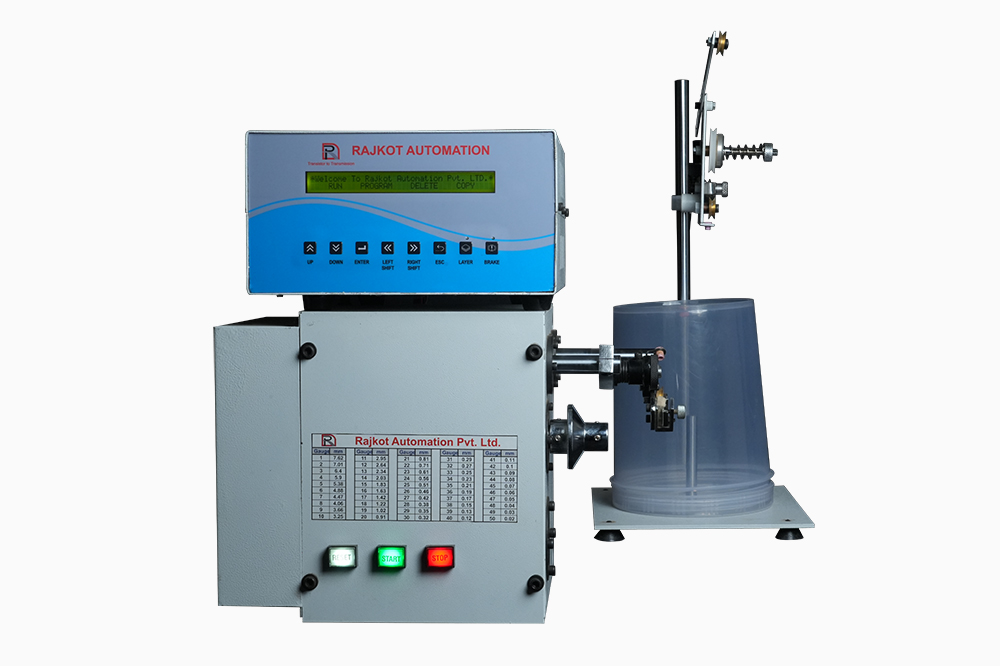

An automatic transformer coil winding machine is designed to precisely wind copper or aluminium wire on transformer bobbins or cores with high accuracy and uniform tension. It reduces manual effort by automating operations such as layer winding, coil counting, tension control, and insulation placement, ensuring consistent quality. These machines improve productivity, minimize human error, and are widely used in the transformer manufacturing industry for small to large-scale production.
| Wire Range | : 0.02 mm to 1.22 mm ( 50 - 18 AWG) |
| Winding With | : 100 mm |
| Maximum Bobbin Diameter | : 120 mm |
| Spindle Speed | : 9000/5000/3000/2000 RPM |
| Break | : electro- magnetic disc break |
| No. of Turns | : 99999 |
Transformer, Solar fence guard transformer (Solar Zatka Machine transformer), transformer for measurement and protection devices, coils for testing and measuring instruments, chargers, adapters, LED drivers, stabilizers and electronic circuits.
